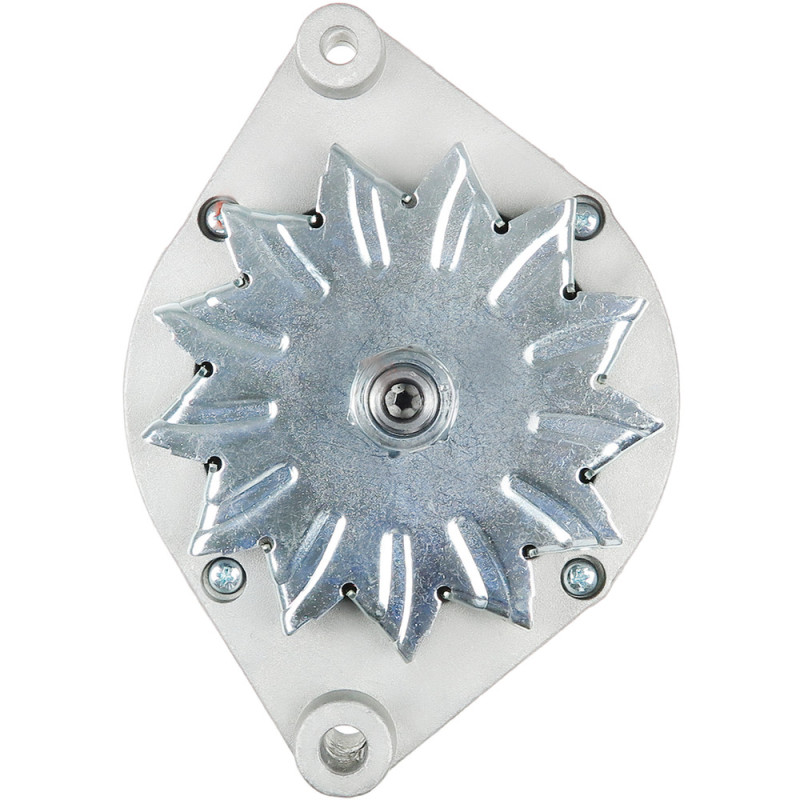

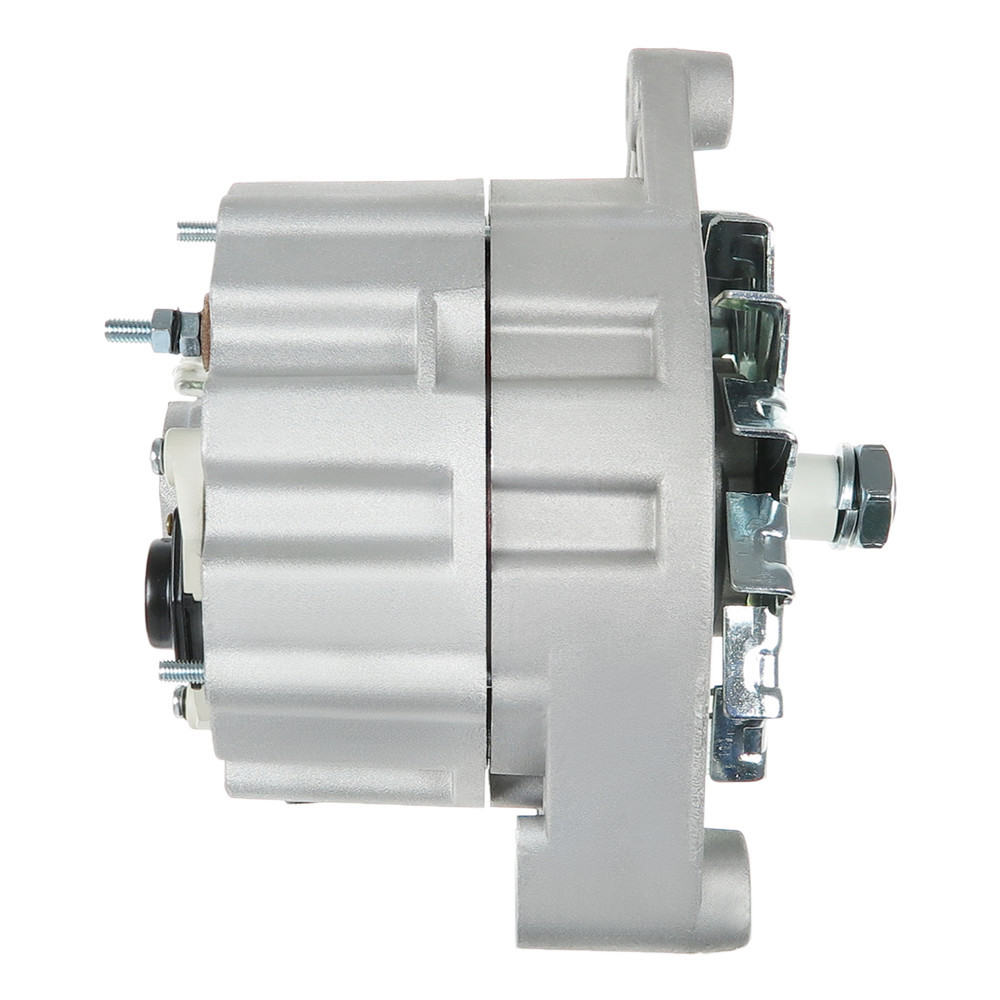

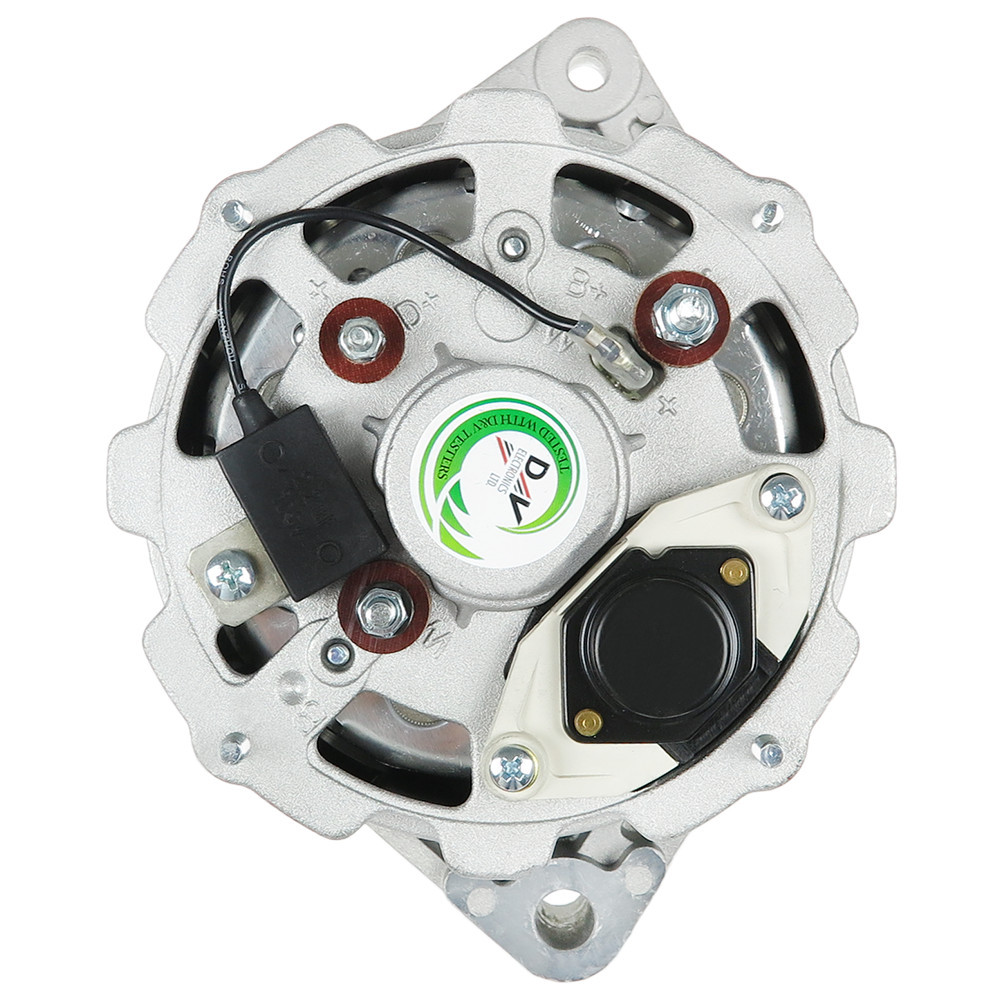

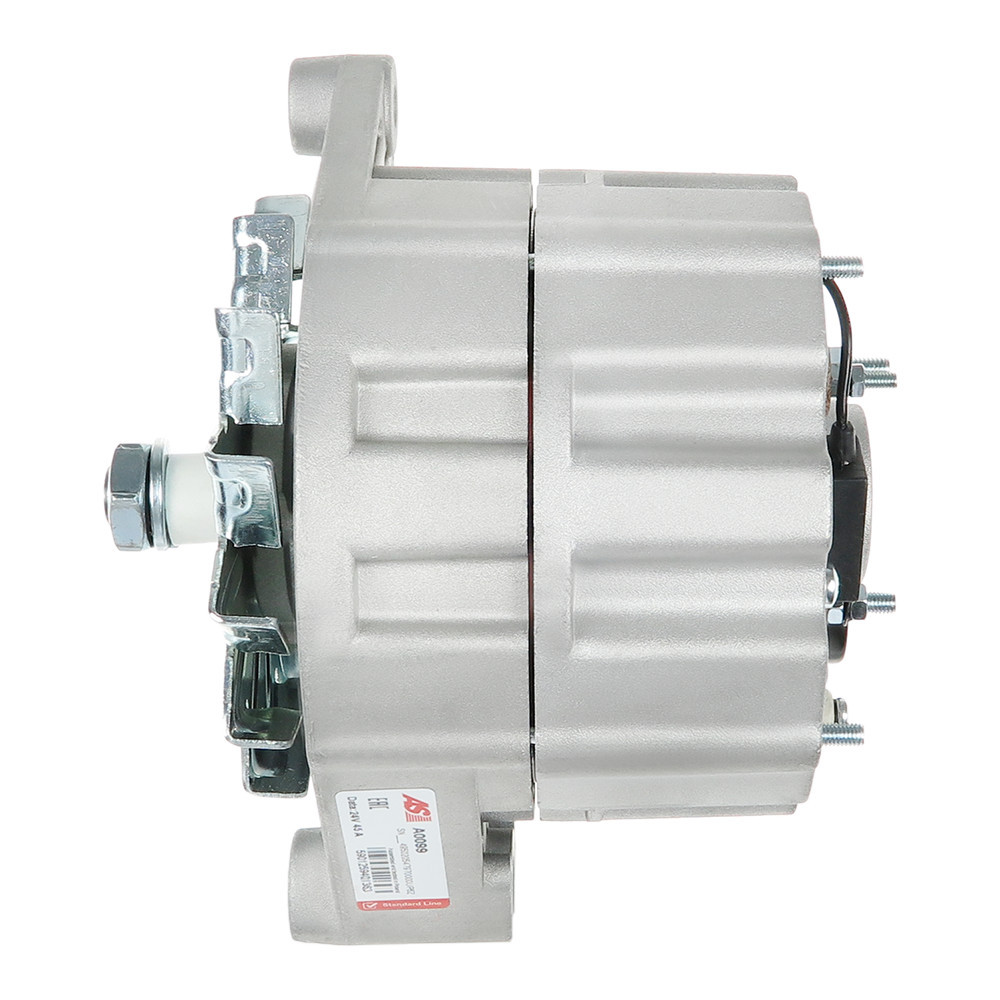

Dynamo Volvo F12

Referentie :
- 0120489643 (BOSCH)

Toepassingen
Gegevensblad

VOLVO F12

Model

Motor

Cilinderinhoud en vermogen

Van - tot

F12 F 12/310

TD120G

CCM:

11980

HP:

306

KW:

225

01.1976 => 12.1983

F12 F 12/310

TD120GA

CCM:

11980

HP:

309

KW:

227

01.1976 => 12.1983

F12 F 12/320

TD121G

CCM:

11980

HP:

320

KW:

235

01.1984 => 12.1986

F12 F 12/320,F 12/330

TD120G

CCM:

11980

HP:

330

KW:

243

08.1977 => 12.1986

F12 F 12/320,F 12/330

TD121G

CCM:

11980

HP:

330

KW:

243

08.1977 => 12.1986

F12 F 12/320,F 12/330

TD121GD

CCM:

11980

HP:

330

KW:

243

08.1977 => 12.1986

F12 F 12/330

TD120E

CCM:

11980

HP:

326

KW:

240

01.1976 => 12.1983

F12 F 12/330

TD121GD

CCM:

11980

HP:

330

KW:

243

01.1984 => 12.1986

F12 F 12/360

TD120F

CCM:

11980

HP:

360

KW:

265

01.1976 => 12.1983

F12 F 12/360

TD120FC

CCM:

11980

HP:

360

KW:

265

01.1976 => 12.1983

F12 F 12/360

TD122F

CCM:

11980

HP:

356

KW:

262

01.1988 => 12.1990

F12 F 12/360

TD122FH

CCM:

11980

HP:

356

KW:

262

01.1988 => 12.1990

F12 F 12/370

TD120D

CCM:

11980

HP:

371

KW:

273

01.1976 => 12.1983

F12 F 12/370

TD121F

CCM:

11980

HP:

370

KW:

272

08.1977 => 12.1986

F12 F 12/380

TD121FD

CCM:

11980

HP:

385

KW:

283

01.1984 => 12.1986

F12 F 12/400

TD122FL

CCM:

11980

HP:

396

KW:

291

01.1987 => 12.1995

F12 F 12/400

TD122FS

CCM:

11980

HP:

396

KW:

291

01.1987 => 12.1995

F12 F 12/400,F 12/410

TD122FL

CCM:

11980

HP:

405

KW:

298

01.1988 => 12.1994

F12 F 12/400,F 12/410

TD122FS

CCM:

11980

HP:

405

KW:

298

01.1988 => 12.1994

F12 F 12/400,F 12/410

TD123ES

CCM:

11980

HP:

405

KW:

298

01.1988 => 12.1994

Origineel onderdeel : Nee
Soort reserveonderdeel : Dynamo
Motorisatie : F12
Kan op gemonteerd worden : Volvo
Stroomsterkte : 45
Spanning in volt : 24
Vanaf : 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983

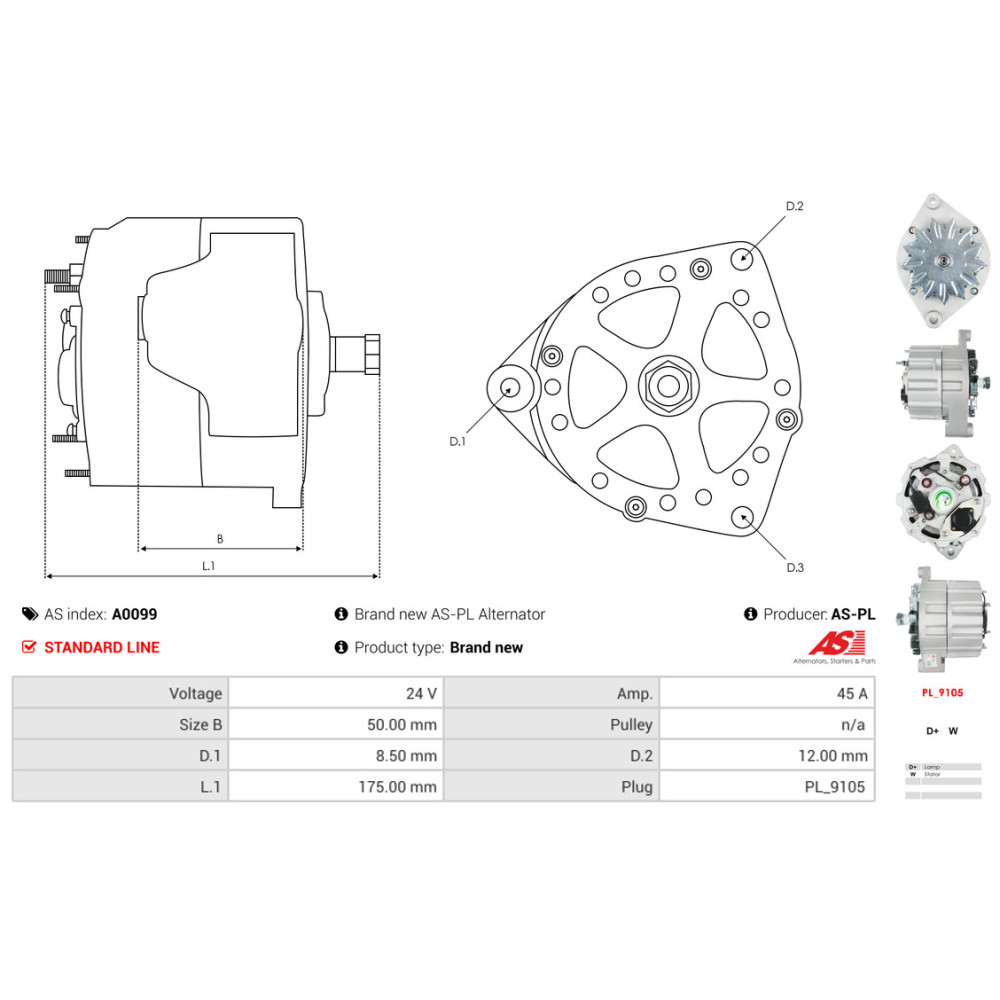

L.1 [ mm ] : 175.00
Taille B [ mm ] : 50.00
Stekkertype : PL_9105
Poelie : n/a
D.1 [ mm ] : 8.50
D.2 [ mm ] : 12.00
Type : F12 F 12/310, F12 F 12/320, F12 F 12/320,F 12/330, F12 F 12/330, F12 F 12/360, F12 F 12/370, F12 F 12/380, F12 F 12/400, F12 F 12/400,F 12/410
Motorcode : TD120D, TD120E, TD120F, TD120FC, TD120G, TD120GA, TD121F, TD121FD, TD121G, TD121GD, TD122F, TD122FH, TD122FL, TD122FS, TD123ES
