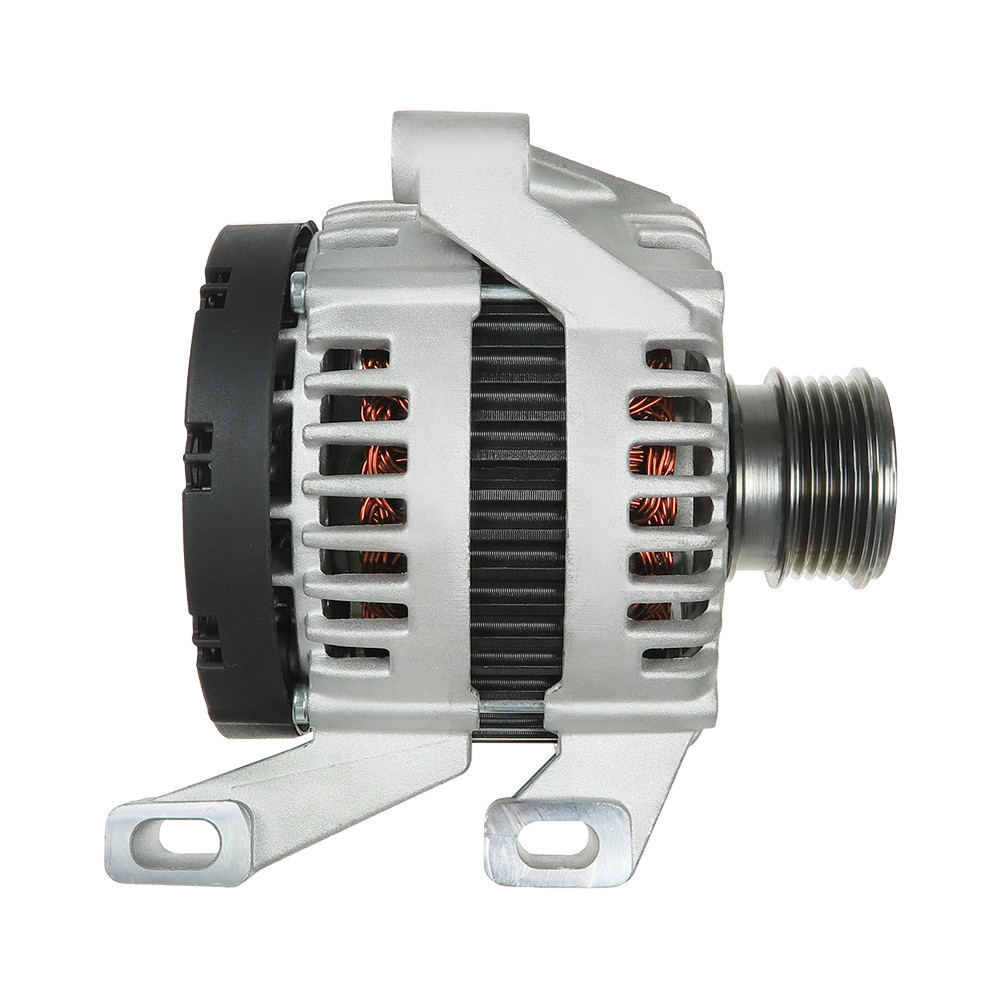

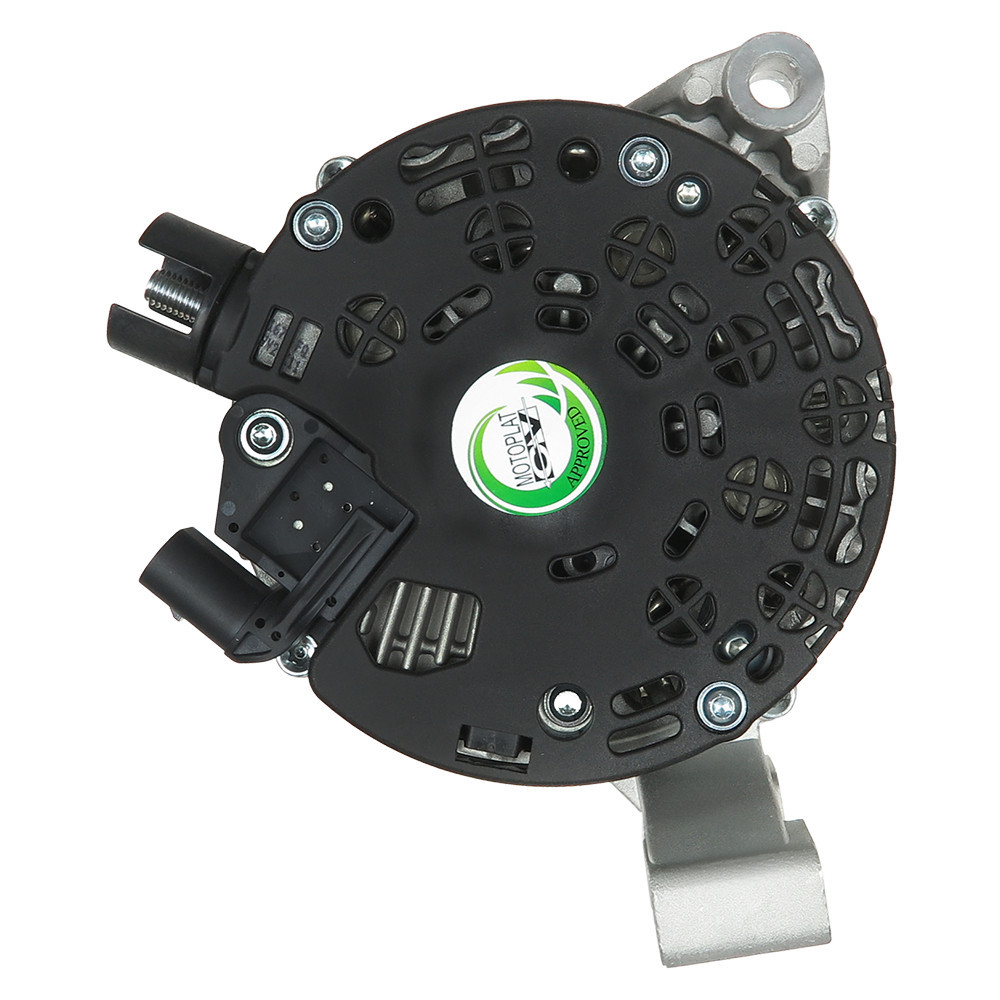

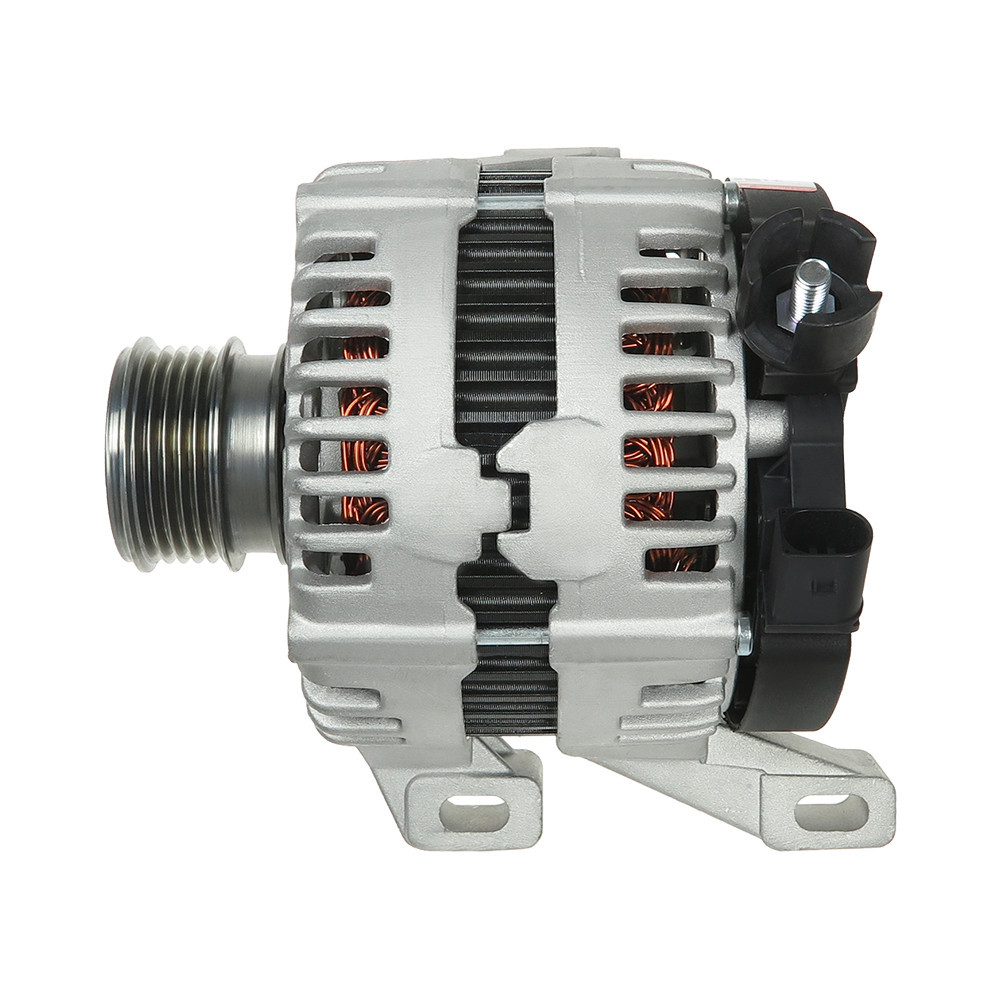

Dynamo Volvo S60 II (134)

Referentie :
- 0121615005 (BOSCH)

Toepassingen
Gegevensblad

VOLVO S60 II (134)

Model

Motor

Cilinderinhoud en vermogen

Van - tot

S60 II (134) 2.0 T

B5204T8

CCM:

1984

HP:

180

KW:

132

05.2012 => 12.2015

S60 II (134) 2.5 T

B5254T14

CCM:

2497

HP:

249

KW:

183

01.2013 => 01.2016

S60 II (134) D3

D5204T2

CCM:

1984

HP:

163

KW:

120

04.2010 => 12.2014

S60 II (134) D3

D5204T3

CCM:

1984

HP:

163

KW:

120

04.2010 => 12.2014

S60 II (134) D3

D5204T7

CCM:

1984

HP:

136

KW:

100

05.2012 => 12.2015

S60 II (134) D4

D5204T3

CCM:

1984

HP:

163

KW:

120

04.2010 => 12.2014

S60 II (134) D4 AWD

D5244T21

CCM:

2400

HP:

190

KW:

140

03.2015 => 05.2018

S60 II (134) D5

D5244T10

CCM:

2400

HP:

205

KW:

151

04.2010 => 12.2011

S60 II (134) D5

D5244T11

CCM:

2400

HP:

215

KW:

158

04.2011 => 12.2015

S60 II (134) D5

D5244T15

CCM:

2400

HP:

215

KW:

158

04.2011 => 12.2015

S60 II (134) D5 AWD

D5244T10

CCM:

2400

HP:

205

KW:

151

04.2010 => 12.2011

S60 II (134) D5 AWD

D5244T15

CCM:

2400

HP:

215

KW:

158

04.2011 => 12.2015

S60 II (134) T5

B5254T5

CCM:

2521

HP:

253

KW:

186

09.2011 => 12.2015

Origineel onderdeel : Nee
Soort reserveonderdeel : Dynamo
Motorisatie : S60 II (134)
Kan op gemonteerd worden : Volvo
Jaren : 2012, 2013, 2014, 2015
Stroomsterkte : 150
Aantal groef (katrol) : 5
Spanning in volt : 12
L.1 [ mm ] : 192.00
Taille A [ mm ] : 63.00
D.3 [ mm ] : 10.50
E.1 [ mm ] : 32.00
E.2 [ mm ] : 32.50
Taille C [ mm ] : 91.00
COM ID : 88
Stekkertype : PL_2305
Poelie : AFP
D.1 [ mm ] : 10.50
D.2 [ mm ] : 10.50
O.D.1 [ mm ] : 54.00
Type : S60 II (134) 2.0 T, S60 II (134) 2.5 T, S60 II (134) D3, S60 II (134) D4, S60 II (134) D4 AWD, S60 II (134) D5, S60 II (134) D5 AWD, S60 II (134) T5
Motorcode : B5204T8, B5254T14, B5254T5, D5204T2, D5204T3, D5204T7, D5244T10, D5244T11, D5244T15, D5244T21
