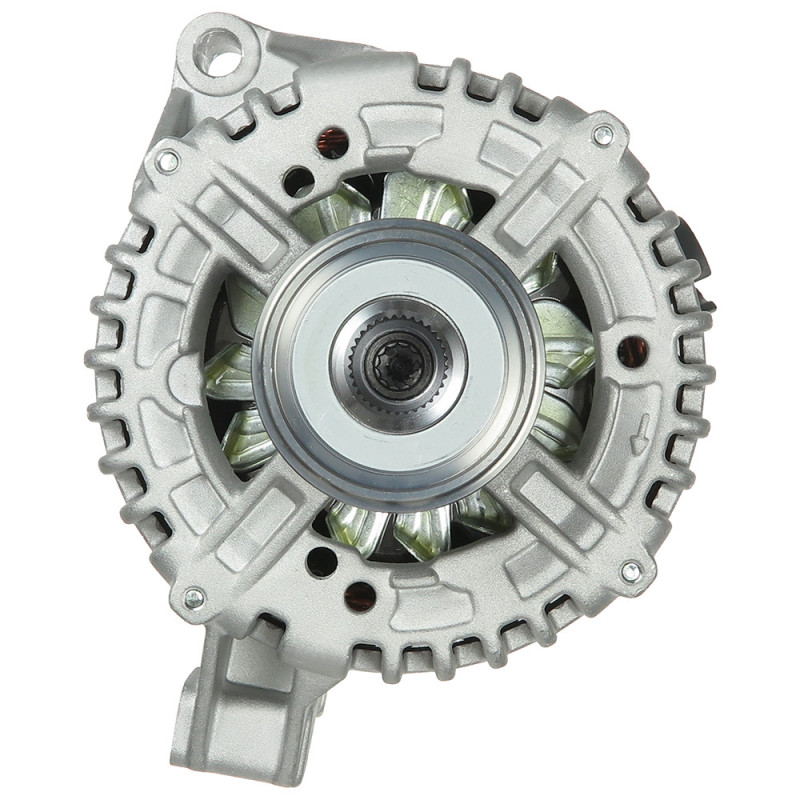

Dynamo Volvo XC70 II (136)

Referentie :
- 0121615005 (BOSCH)

Toepassingen
Gegevensblad

VOLVO XC70 II (136)

Model

Motor

Cilinderinhoud en vermogen

Van - tot

XC70 II (136) 2.4 D

D5244T14

CCM:

2400

HP:

175

KW:

129

06.2009 => 12.2010

XC70 II (136) 2.4 D / D4 AWD

D5244T16

CCM:

2400

HP:

163

KW:

120

08.2007 => 04.2016

XC70 II (136) 2.4 D / D4 AWD

D5244T17

CCM:

2400

HP:

163

KW:

120

08.2007 => 04.2016

XC70 II (136) 2.4 D / D4 AWD

D5244T5

CCM:

2400

HP:

163

KW:

120

08.2007 => 04.2016

XC70 II (136) D3

D5204T2

CCM:

1984

HP:

163

KW:

120

04.2010 => 12.2015

XC70 II (136) D3

D5204T3

CCM:

1984

HP:

163

KW:

120

04.2010 => 12.2015

XC70 II (136) D4

D4204T5

CCM:

1969

HP:

181

KW:

133

10.2013 => 04.2016

XC70 II (136) D4 AWD

D5244T12

CCM:

2400

HP:

181

KW:

133

10.2013 => 04.2016

XC70 II (136) D5 AWD

D5244T10

CCM:

2400

HP:

205

KW:

151

04.2009 => 12.2011

XC70 II (136) D5 AWD

D5244T11

CCM:

2400

HP:

215

KW:

158

04.2011 => 12.2015

XC70 II (136) D5 AWD

D5244T15

CCM:

2400

HP:

215

KW:

158

04.2011 => 12.2015

XC70 II (136) D5 AWD

D5244T20

CCM:

2400

HP:

220

KW:

162

03.2015 => 04.2016

XC70 II (136) D5 AWD

D5244T4

CCM:

2400

HP:

185

KW:

136

04.2007 => 12.2009

Origineel onderdeel : Nee
Soort reserveonderdeel : Dynamo
Motorisatie : XC70 II (136)
Kan op gemonteerd worden : Volvo
Jaren : 2009, 2010
Stroomsterkte : 150
Aantal groef (katrol) : 5
Spanning in volt : 12

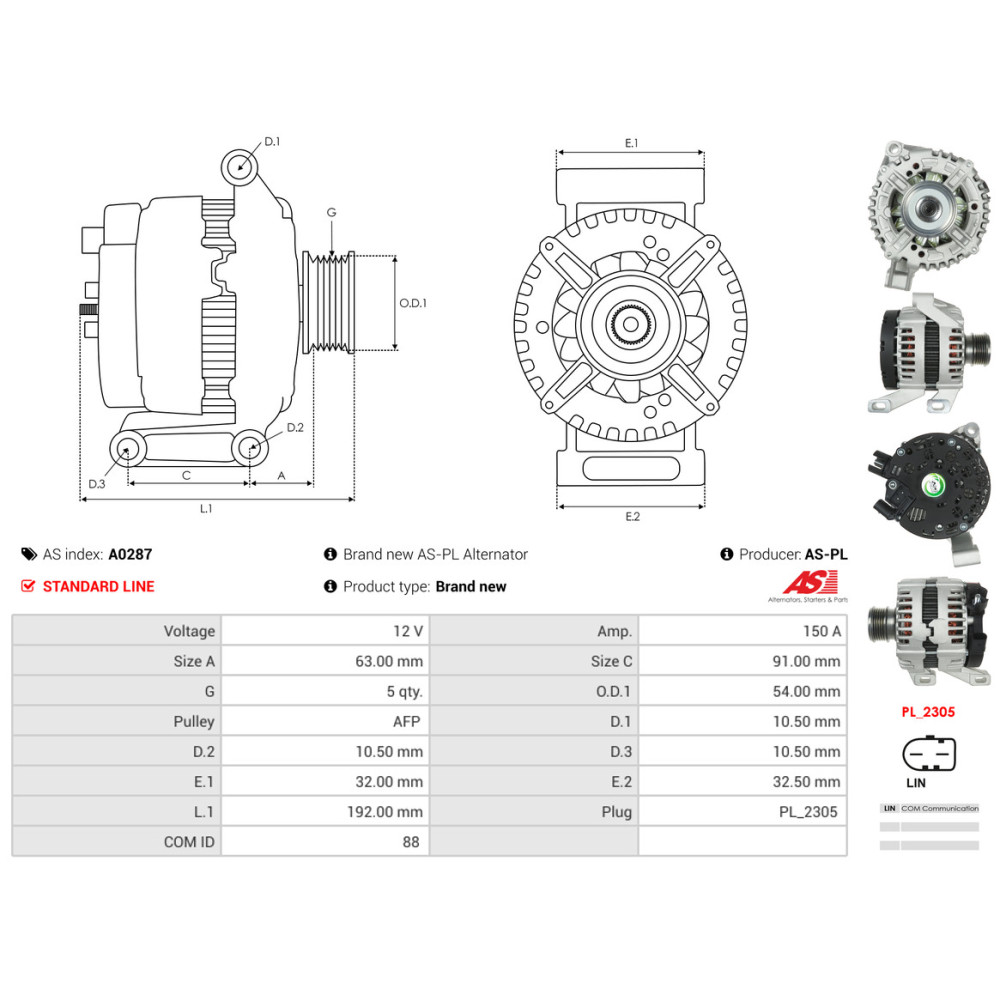

L.1 [ mm ] : 192.00
Taille A [ mm ] : 63.00
D.3 [ mm ] : 10.50
E.1 [ mm ] : 32.00
E.2 [ mm ] : 32.50
Taille C [ mm ] : 91.00
COM ID : 88
Stekkertype : PL_2305
Poelie : AFP
D.1 [ mm ] : 10.50
D.2 [ mm ] : 10.50
O.D.1 [ mm ] : 54.00
Type : XC70 II (136) 2.4 D, XC70 II (136) 2.4 D / D4 AWD, XC70 II (136) D3, XC70 II (136) D4, XC70 II (136) D4 AWD, XC70 II (136) D5 AWD
Motorcode : D4204T5, D5204T2, D5204T3, D5244T10, D5244T11, D5244T12, D5244T14, D5244T15, D5244T16, D5244T17, D5244T20, D5244T4, D5244T5
